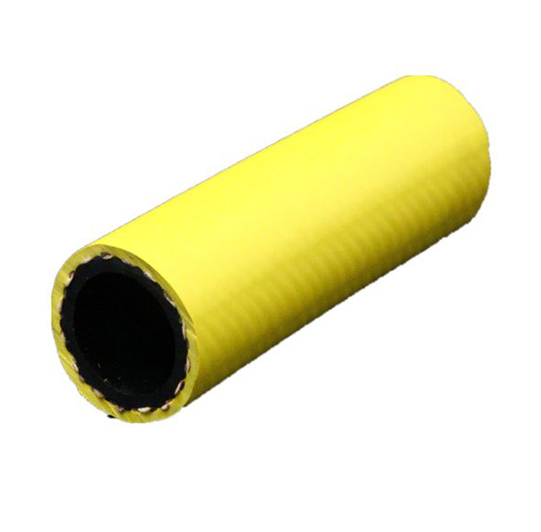

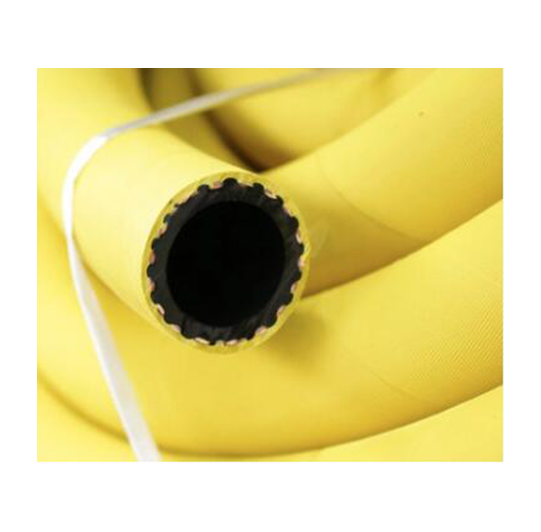

Smooth Yellow Air Hose-Extruded Smooth 20Bar
Application:
Designed for compressed air, to convey water and non-aggressive fluids in various industrial and agricultural applications.
Temperature:From -25 °C to +80 °C

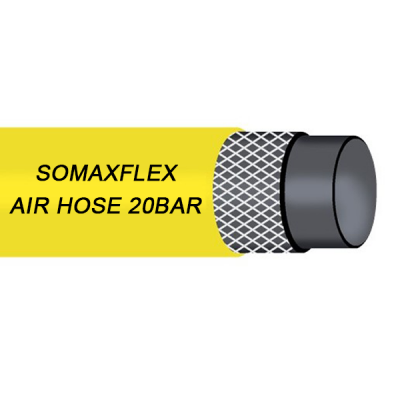

Construction Tube: Black, seamless synthetic rubber compound.
Reinforcement: High strength synthetic yarn.
Cover: Yellow EPDM, abrasion, ozone and weather resistant.
Yellow Smooth Air Hose 20Bar
| Code | I.D. | O.D. | W.P. | B.P. | Weight | Max.Length | |||
| mm | inch | mm | bar | psi | bar | psi | kg/m | m/roll | |
| 1003000 | 5 | 3/16″ | 12 | 20 | 300 | 60 | 900 | 0.13 | 100 |
| 1003001 | 6 | 1/4″ | 13 | 20 | 300 | 60 | 900 | 0.15 | 100 |
| 1003002 | 8 | 5/16″ | 15 | 20 | 300 | 60 | 900 | 0.23 | 100 |
| 1003003 | 10 | 3/8″ | 17 | 20 | 300 | 60 | 900 | 0.26 | 100 |
| 1003004 | 13 | 1/2″ | 22 | 20 | 300 | 60 | 900 | 0.36 | 100 |
| 1003005 | 16 | 5/8″ | 25 | 20 | 300 | 60 | 900 | 0.53 | 50 |
| 1003006 | 19 | 3/4″ | 29 | 20 | 300 | 60 | 900 | 0.64 | 50 |
| 1003007 | 22 | 7/8″ | 32 | 20 | 300 | 60 | 900 | 0.75 | 50 |
| 1003008 | 25 | 1″ | 36 | 20 | 300 | 60 | 900 | 0.85 | 50 |
