Application:
Softwall hose designed with ultra-high molecular weight polyethylene tube,excellent in handing a wide range of chemicals,petroleum products and oils.
Temperature range:-40℃to +120℃
Tube:White,smooth,Ultra High Molecular Weight Polyethylene (UHMWPE)
Reinforcement:High strength synthetic cord and helix wire.
Cover:Blue or green,smooth(wrapped finish),EPDM rubber, resistant to chemical,weathering and ozone

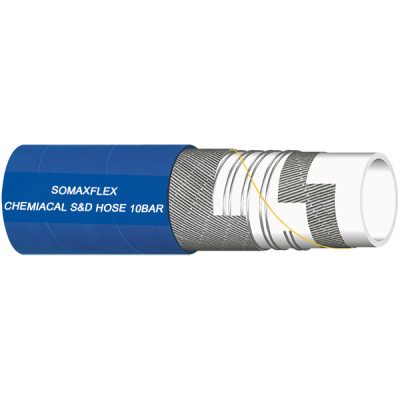

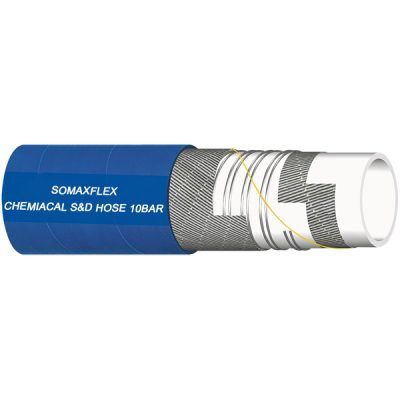

UHMWPE Chemical Suction and Discharge Hose W.P 10Bar
| code | I.D. | O.D. | W.P. | B.P. | Max.Length | ||||
| inch | mm | mm | bar | psi | bar | psi | m | ft | |
| 2002000 | 3/4″ | 19.1 | 31 | 10 | 150 | 40 | 600 | 60 | 200 |
| 2002001 | 1″ | 25.4 | 37 | 10 | 150 | 40 | 600 | 60 | 200 |
| 2002002 | 1-1/4″ | 31.8 | 44 | 10 | 150 | 40 | 600 | 60 | 200 |
| 2002003 | 1-1/2″ | 38.1 | 51 | 10 | 150 | 40 | 600 | 60 | 200 |
| 2002004 | 2″ | 50.8 | 67 | 10 | 150 | 40 | 600 | 60 | 200 |
| 2002005 | 2-1/2″ | 63.5 | 79 | 10 | 150 | 40 | 600 | 60 | 200 |
| 2002006 | 3″ | 76.2 | 92 | 10 | 150 | 40 | 600 | 60 | 200 |
| 2002007 | 3-1/2″ | 88.9 | 105 | 10 | 150 | 40 | 600 | 60 | 200 |
| 2002008 | 4″ | 101.6 | 118 | 10 | 150 | 40 | 600 | 60 | 200 |
