Standard: SAE J2064 / SAE J3062 / QC/T664
Certificate: ISO/TS 16949:2009
Refrigerant: R134a , R12,R404a
Temperature: -40℃ ~ +135℃
-40°F ~ +275°F
Features:
Low Permeability&Pulse-Resistant &Aging Resistance&Ozone Resistance &Shock Resistance

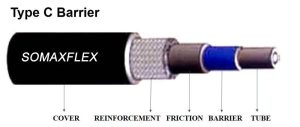

Tube: EPDM / CSM / IIR
Barrier: PA / Nylon
Friction: EPDM / CSM / IIR
Reinforcement: PET/ PVA(braiding)
Cover: EPDM /Cloth
| Type | Inch | I.D. | O.D. | Thickness | Wall Diff | W.P. | B.P. | Min. Bend Radius | permeability | ||
| mm | mm | mm | mm | mpa | psi | mpa | psi | mpa | |||
| SMX -SAE J2064/ SAE J3062/QC/T664-8.2 | 5/16” | 8.2±0.2 | 19.0±0.3 | 5.5 | 0.4 | 3.5 | 500 | 21 | 3000 | 55 | 1.6 |
| SMX -SAE J2064/ SAE J3062/QC/T664-10.5 | 13/32” | 10.5±0.2 | 23.0±0.3 | 6.2 | 0.4 | 3.5 | 500 | 21 | 3000 | 65 | 1.6 |
| SMX -SAE J2064/ SAE J3062/QC/T664-13 | 1/2B” | 13.0±0.2 | 23.0±0.3 | 5 | 0.4 | 3.5 | 500 | 22 | 3200 | 70 | 1.6 |
| SMX -SAE J2064/ SAE J3062/QC/T664-13 | 1/2A” | 13.0±0.2 | 25.4±0.3 | 6.2 | 0.4 | 3.5 | 500 | 22 | 3200 | 75 | 1.6 |
| SMX -SAE J2064/ SAE J3062/QC/T664-16 | 5/8” | 16.0±0.2 | 28.6±0.5 | 6.1 | 0.4 | 1.5 | 200 | 18 | 2600 | 85 | 1.6 |
| SMX -SAE J2064/ SAE J3062/QC/T664-19 | 3/4” | 19.0±0.4 | 28.6±0.5 | 4.8 | 0.4 | 1.5 | 200 | 12 | 1700 | 100 | 1.6 |
| SMX -SAE J2064/ SAE J3062/QC/T664-28 | 9/8” | 28.0±0.4 | 40.0±0.5 | 4 | 0.4 | 1.5 | 200 | 12 | 1700 | 150 | 1.6 |
| SMX -SAE J2064/ SAE J3062/QC/T664-8.2 | 5/16” | 8.2±0.2 | 15.2±0.3 | 3.5 | 0.4 | 3.5 | 200 | 28 | 3300 | 55 | 1.6 |
| SMX -SAE J2064/ SAE J3062/QC/T664-10.2 | 13/32” | 10.2±0.2 | 17.2±0.3 | 3.5 | 0.4 | 3.5 | 500 | 23 | 3300 | 65 | 1.6 |
| SMX -SAE J2064/ SAE J3062/QC/T664-11.4 | 13/32” | 11.4±0.2 | 18.4±0.3 | 3.5 | 0.4 | 3.5 | 500 | 22 | 3200 | 70 | 1.6 |
| SMX -SAE J2064/ SAE J3062/QC/T664-13 | 1/2” | 13.0±0.2 | 21.0±0.3 | 4 | 0.4 | 3.5 | 500 | 20 | 2900 | 75 | 1.6 |
| SMX -SAE J2064/ SAE J3062/QC/T664-15.2 | 5/8” | 15.2±0.2 | 23.0±0.3 | 3.9 | 0.4 | 3.5 | 500 | 18 | 2600 | 85 | 1.6 |
| SMX -SAE J2064/ SAE J3062/QC/T664-18.2 | 3/4” | 18.2±0.2 | 27.5±0.5 | 4.6 | 0.4 | 1.5 | 200 | 12 | 1700 | 100 | 1.6 |
APPLICATION
