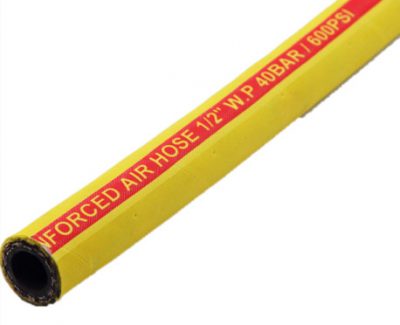

Application: High pressure steel wire reinforced compressed air hose;
Temperature: From -30°C (-22°F) to +70°C (+158°F).

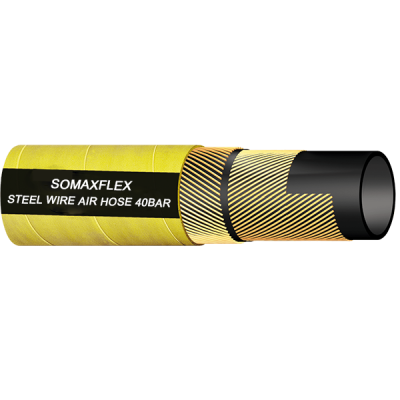

Tube: Black, smooth, NBR rubber.

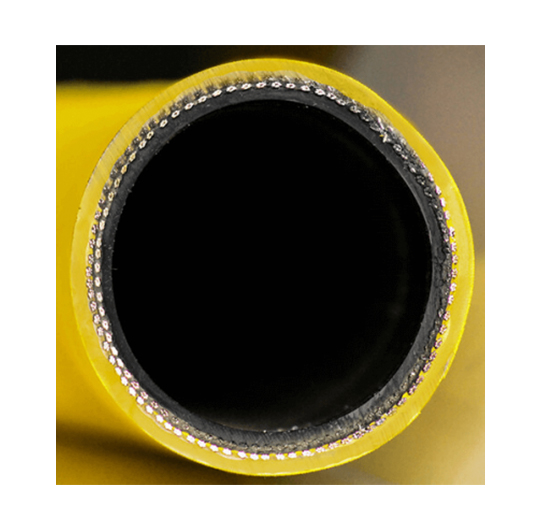

Reinforcement: High tensile steel wire.
Cover: Yellow, smooth, (wrapped finish) long lasting EPDM rubber, weathering and ozone resistant.
| Code | I.D. | O.D. | W.P. | B.P. | Max.Length |
| mm | mm | bar | bar | m/roll | |
| 1006001 | 13 | 22 | 40 | 120 | 61 |
| 1006002 | 19 | 28 | 40 | 120 | 61 |
| 1006003 | 25 | 34 | 40 | 120 | 61 |
| 1006004 | 32 | 42 | 40 | 120 | 61 |
| 1006005 | 38 | 48 | 40 | 120 | 61 |
| 1006006 | 51 | 64 | 40 | 120 | 61 |
| 1006007 | 63.5 | 77 | 30 | 90 | 61 |
| 1006008 | 76 | 90 | 30 | 90 | 61 |
