Sizes: 3/16″, 1/4″, 5/16″, 3/8″, 1/2″

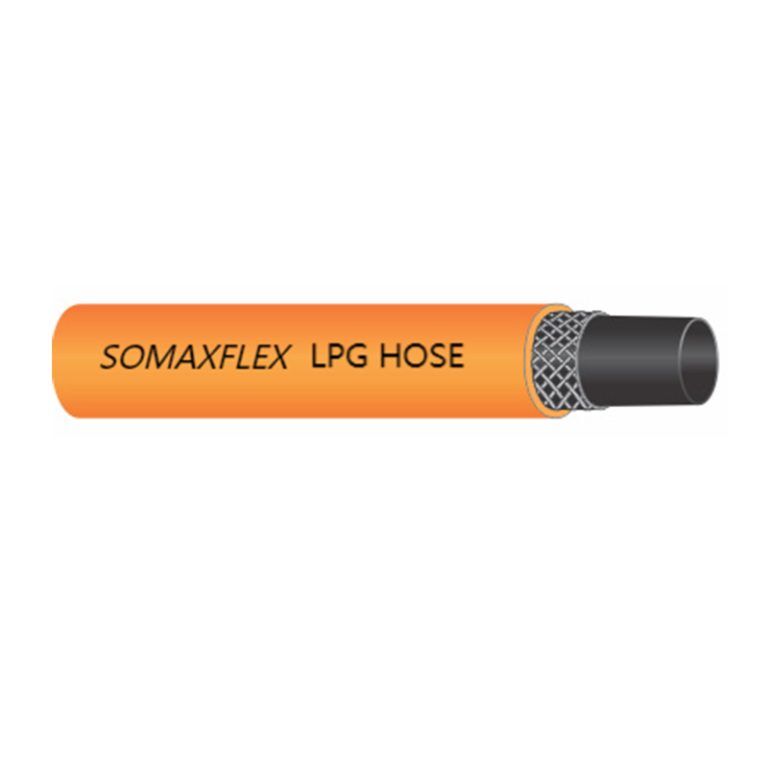

Tube: black, smooth, synthetic rubber
Reinforcement: high tensile synthetic yarn braided
Application: for conveyance of liquid gas, home burner system, grill, oil-resistant
Cover: orange smooth synthetic rubber, abrasion, weather and oil mist resistant
Temperature: -20°C(-4°F) to +70°C (+158°F)
Standard: ISO 3821 (formerly known as EN559)
Convey Gas, air, water, widely use in workshop, farm, construction, mining and family.
| Code | I.D. | O.D. | W.P. | B.P. | Weight | Max.Length | |||
| mm | inch | mm | mpa | psi | mpa | psi | kg/m | m/roll | |
| 5001000 | 5 | 3/16″ | 12 | 2 | 300 | 6 | 900 | 0.13 | 100 |
| 5001001 | 6 | 1/4″ | 13 | 2 | 300 | 6 | 900 | 0.15 | 100 |
| 5001002 | 8 | 5/16″ | 15 | 2 | 300 | 6 | 900 | 0.23 | 100 |
| 5001003 | 10 | 3/8″ | 17 | 2 | 300 | 6 | 900 | 0.26 | 100 |
| 5001004 | 13 | 1/2″ | 22 | 2 | 300 | 6 | 900 | 0.36 | 100 |
