Characteristic:
Construction:
Tube: EPDM, white, smooth and non-conductive.
Reinforcement: 2 ply synthetic fabric.
Cover: Glass fibre ply impregnated with heat and flame resistant synthetic rubber.

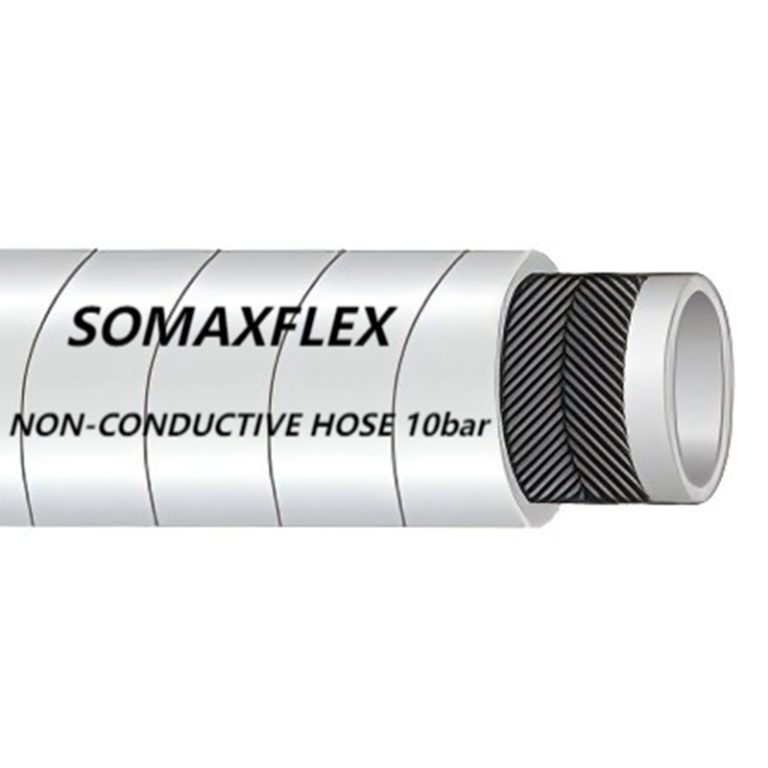

Application:The non-conductive furnace door hose is designed for conveying cooling water to furnace doors in steel mills, glass plants an similar operations.
Temperature:
-40℃(-40°F) to +130℃(+266°F), Cover to +600℃
| Code | I.D. | O.D. | REINFORCEMENT | W.P. | Max.Length | ||
| mm | inch | mm | ply | bar | psi | m/roll | |
| 4005000 | 12.7 | 1/2″ | 23 | 2 | 10 | 150 | 50 |
| 4005001 | 19 | 3/4″ | 30 | 2 | 10 | 150 | 50 |
| 4005002 | 25.4 | 1″ | 35 | 2 | 10 | 150 | 50 |
| 4005003 | 31.8 | 1-1/4″ | 45 | 2 | 10 | 150 | 50 |
| 4005004 | 38.1 | 1-1/2″ | 51 | 2 | 10 | 150 | 50 |
| 4005005 | 50.8 | 2″ | 64 | 2 | 10 | 150 | 50 |
