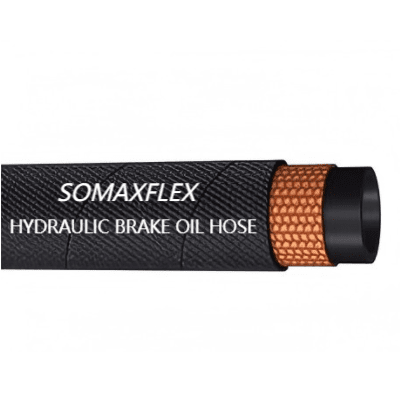

Construction:
Inner Tube:EPDM rubber
First Braided Layer:High tensile PE/PVA
Middle Rubber:EPDM rubber
Second Braided Layer:High tensile PVA
Outer rubber:EPDM rubber
Temperature Range:-40~+120℃
Application:

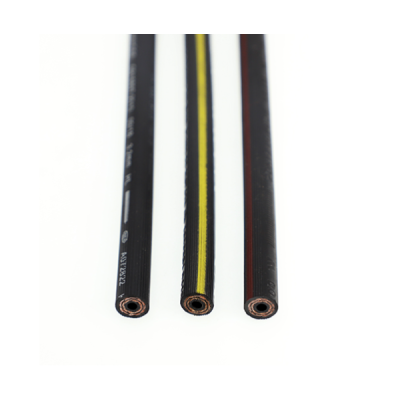

Hydraulic brake hose act as a pressure transmission for automotive hydraulic brake system. Used for Cars, motorcycles,light trucks and other Light Heavy-Duty vehicles for hydraulic brake system.
| Type | Inch | I.D. | O.D. | W.P. | W.P. | B.P. | B.P. |
| mm | mm | Mpa | Psi | Min.Mpa | Min.Psi | ||
| SAEJ1401 Hydraulic Brake Oil Hose | 1/8 | 3.2 | 10.5 | 27.6 | 4140 | 49 | 7350 |
| SAEJ1401 Hydraulic Brake Oil Hose | 1/5 | 4.8 | 12.5 | 27.6 | 4140 | 38.1 | 5715 |
