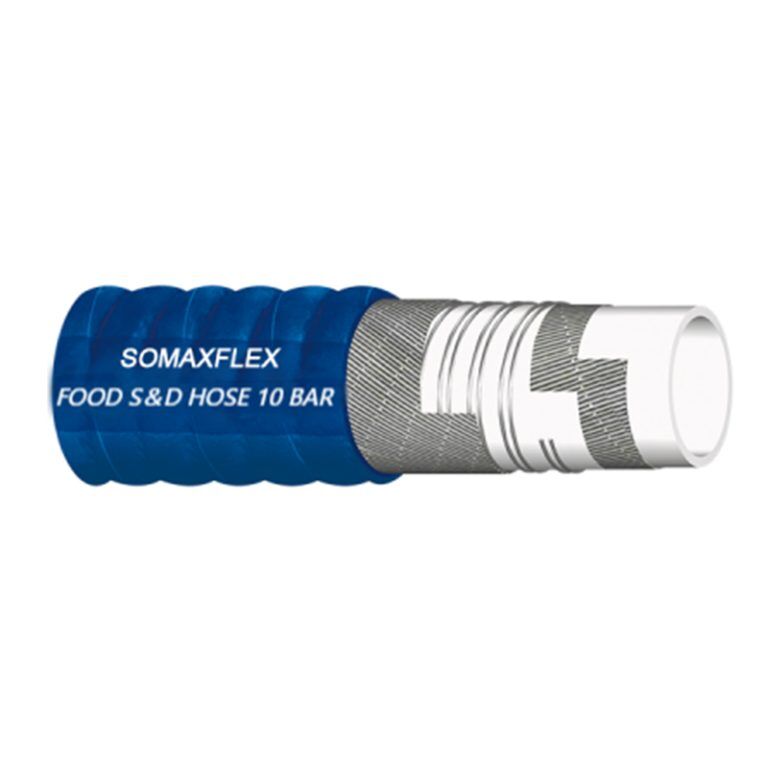

Food Suction and Discharge Hose (For Fatty Foods)(MANDREL TYPE)
APPLICATION:FDA approved food hose designed for suction and delivery of fatty foods such as milk, edible oil, daily products & etc.
OPTIONAL REQUEST:Standard F.D.A. Title 21, 177.2600; Corrugated (wrapped finish).
Food Suction And Delivery Hose Construction:
Tube: White, smooth, NR, NBR or EPDM food quality rubber
Reinforcement: Multi plies high strength synthetic fabric and helix wire
Cover: smooth(wrapped finish), synthetic rubber, blue or white, weathering resistant.
Food Suction And Delivery Hose Application:
FDA approved food hose designed for the delivery of foods such as milk, Juice, beer, edible oil, daily products etc.
Food Suction And Delivery Hose Temperature:
-32℃ to 80℃(-90℉ to +176℉)
Food Suction And Delivery Hose Characteristic:
Food Suction And Delivery Hose 10bar Specification:
| code | I.D. | O.D. | W.P. | B.P. | Vacuum Pressure | Max.Length | ||||
| inch | mm | mm | bar | psi | bar | psi | bar | m | ft | |
| 3003000 | 1/2″ | 12.7 | 24 | 10 | 150 | 30 | 450 | 0.8 | 60 | 200 |
| 3003001 | 3/4″ | 19.1 | 32 | 10 | 150 | 30 | 450 | 0.8 | 60 | 200 |
| 3003002 | 1″ | 25.4 | 38 | 10 | 150 | 30 | 450 | 0.8 | 60 | 200 |
| 3003003 | 1-1/4″ | 31.8 | 46 | 10 | 150 | 30 | 450 | 0.8 | 60 | 200 |
| 3003004 | 1-1/2″ | 38.1 | 52 | 10 | 150 | 30 | 450 | 0.8 | 60 | 200 |
| 3003005 | 2″ | 50.8 | 66 | 10 | 150 | 30 | 450 | 0.8 | 60 | 200 |
| 3003006 | 2-1/2″ | 63.5 | 80 | 10 | 150 | 30 | 450 | 0.8 | 60 | 200 |
| 3003007 | 3″ | 76.2 | 93 | 10 | 150 | 30 | 450 | 0.8 | 60 | 200 |
| 3003008 | 4″ | 101.6 | 120 | 10 | 150 | 30 | 450 | 0.8 | 60 | 200 |
