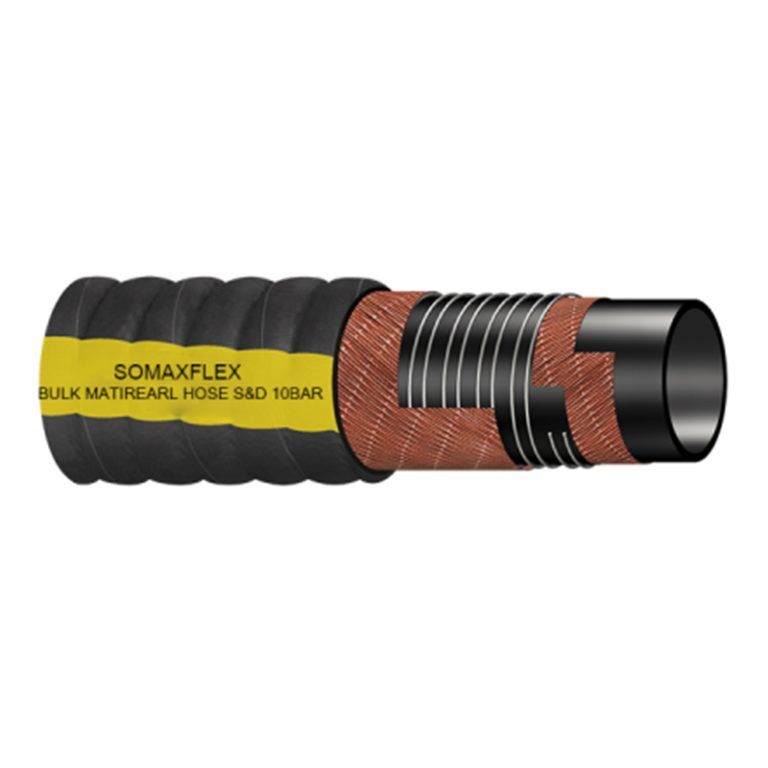

Bulk Material Suction and Delivery Hose 10Bar
Hose Type:Mandrel Built
Tube:Black color of antistatic NR blend compound (high abrasion resistance)
Cover:Black colour of no blend compound(Abrasion and weather resistance)
Reinforcement:Multiply layers of high tensile synthetic cord supported with helix wire with anti static wire
Temperature:-20’C to +80’C
Surface: Wrapped Surface (Corrugated upon request)
Tolerance:ISO 1307

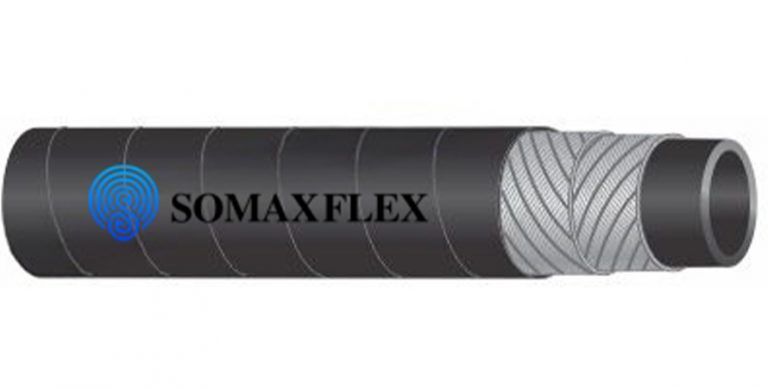

Bulk Materials Suction and Discharge Hose(MANDREL TYPE)
APPLICATION:Specially designed hardwall hose for suction and delivery of dry cement, sand, gravel and etc. Equipped with excellent rebound, durability and abrasion resistant properties.
TEMPERATURE:-30°C(-22°F) to +70°C (+158°F)
TUBE:Black, smooth, synthetic rubber.
REINFORCEMENT:High strength synthetic cord and helix wire.
COVER:Black, smooth (wrapped finish), synthetic rubber, weathering and ozone resistant.
OPTIONAL REQUEST:Corrugated (wrapped finish).
| Code | I.D.(mm) | O.D.(mm) | W.P.(Bar) | B.P.(Bar) | Max.Length(m) |
| 6005000 | 38 | 52 | 10 | 30 | 40 |
| 6005001 | 51 | 67 | 10 | 30 | 40 |
| 6005002 | 64 | 84 | 10 | 30 | 40 |
| 6005003 | 76 | 97 | 10 | 30 | 40 |
| 6005004 | 89 | 110 | 10 | 30 | 40 |
| 6005005 | 102 | 124 | 10 | 30 | 40 |
| 6005006 | 127 | 150 | 10 | 30 | 20 |
| 6005007 | 152 | 176 | 10 | 30 | 10 |
